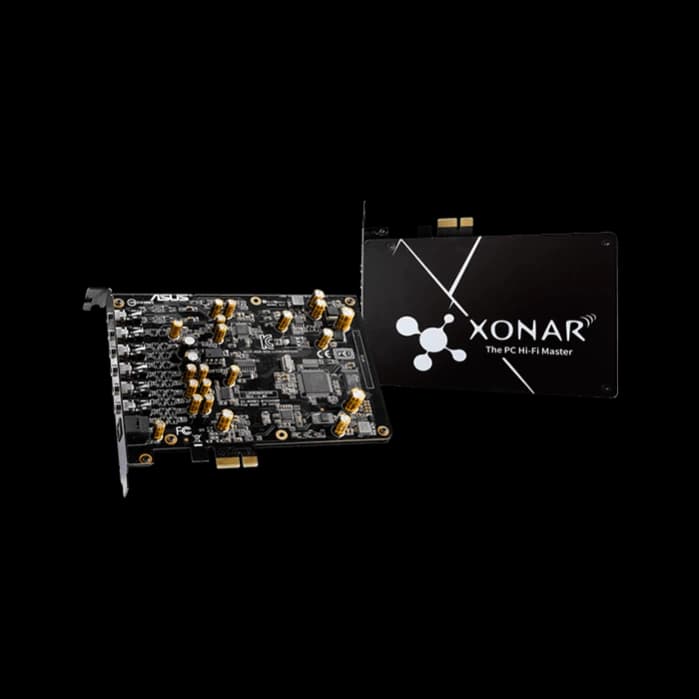

XONAR-AE - PCI sound card

7.1 PCIe gaming sound card with 192kHz/24-bit Hi-Res audio quality, 150ohm headphone amp, high-quality DAC, and exclusive EMI back plate

• 192kHz/24-bit Hi-Res audio and 7.1-channel, 150ohm headphone amp
• High-quality ESS DAC with 110dB signal-to-noise ratio (SNR)
• Exclusive EMI back plate provides noise shielding for exceptionally clear audio
• Sonic Studio enables full audio control via an intuitive, one-page interface
• Perfect Voice technology eliminates background noise for clear in-game communication

Specification:

Interface	PCIe
SNR(dB)	110 dB
THD+N	<0.00158 %(-96 dB)
Headphone output power	2Vrms
Accessory	Quick start guide x 1 Driver CD x 1
I/O	5 x 3.5 mm jack (1/8") (Headphone out /Front out/Side out/Center-Subwoofer out/Rear out) 1 x 3.5 mm jack (1/8") (Line-in/ Mic-in combo) 1 x S/PDIF out (1 x Optical (Toslink))
Audio Processor	Cmedia 6632AE
D-A Converter	ESS ES9023P*1 (112dB DNR, Max. 192KHz/24bit) Cirrus Logic CS4245*1 (104dB DNR, Max. 192KHz/24bit) Cirrus Logic CS4361*1 (103dB DNR, Max. 192KHz/24bit)
ASIO	Yes
Operation System	Windows10(32/64bit) Windows8.1(32/64bit) Windows7(32/64bit)
