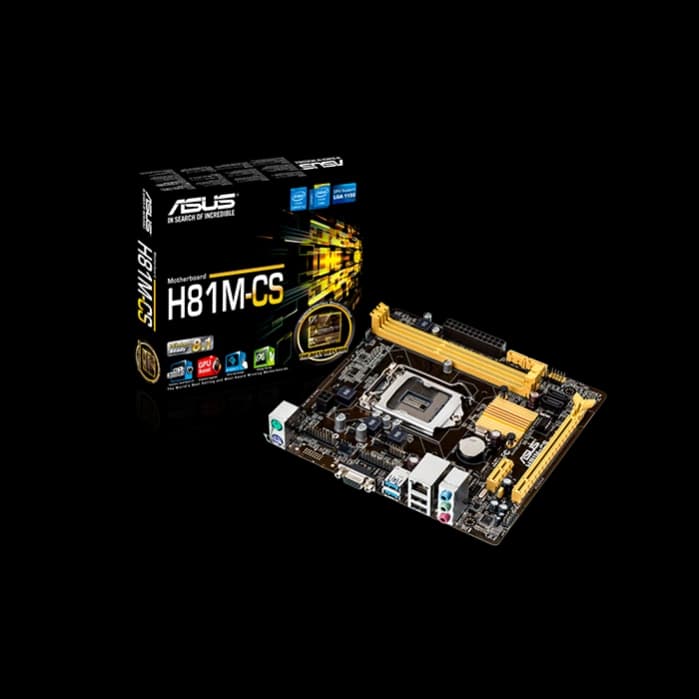

H81M-CS

Great-value H81 micro-ATX motherboard with high stability and durability, with easy-to-use UEFI BIOS and ASUS AI Suite 3 tuning utility.

• New UEFI BIOS and EZ Mode: Friendlier, easier, and more intuitive with helpful info added
• GPU Boost - Go to the limit with iGPU level up!
• CrashFree BIOS 3: Restore corrupted BIOS data from USB storage
• EPU - All-round energy efficiency and detailed CPU wattage settings
• AI Suite 3: One-stop access to innovative ASUS features

  Brand	ASUS
  CPU	Intel? Socket 1150?for 4th?Generation Core?i7/Core?i5/Core?i3/Pentium?/Celeron? Processors Supports Intel? 22?nm CPU Supports Intel? Turbo Boost Technology 2.0 * The Intel? Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to?www.asus.com?for CPU support list
  Chipset	Intel? H81
  Memory	2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel? Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to?www.asus.com?for the Memory QVL (Qualified Vendors Lists). * Due to Intel? chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.
  Graphic	Integrated Graphics Processor - Supports RGB with max. resolution 1920? x 1200? @ 60? Hz Maximum shared memory of 1024? MB (for iGPU exclusively)
  Expansion Slots	1 x PCIe 2.0 x16 1 x PCIe 2.0 x1
  Storage	Intel? H81 chipset : 2 x SATA 6Gb/s port(s), yellow, 2 x SATA 3Gb/s port(s), dark brown, Supports Intel? Rapid Start Technology, Intel? Smart Connect Technology *1
  LAN	Realtek? 8111GR, 1 x Gigabit LAN Controller(s)
  Audio	Realtek ALC887/897?8-Channel High Definition Audio CODEC *2 - Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback
  USB Ports	Intel? H81 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue) Intel? H81 chipset : 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
  Operating System Support	Windows? 8.1 Windows? 8 Windows? 7
