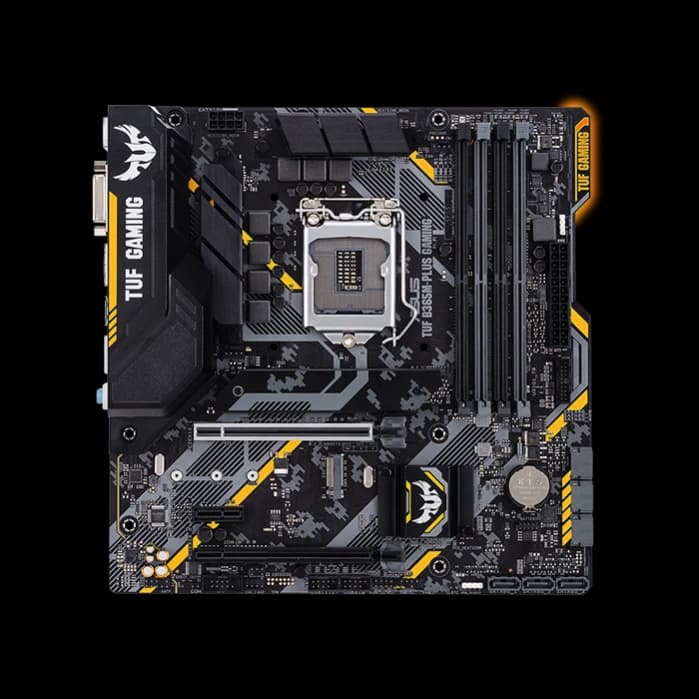

ASUS TUF B365M-PLUS Gaming - Intel LGA 1151 mATX gaming motherboard

TUF Protection: ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability Military-grade TUF Components: TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear Intel? Optane?memory ready: Exploit the latest high-speed storage technology Native M.2: Lightning-fast storage speeds Onboard M.2 heatsink: Cools your M.2 drive, delivering consistent storage performance and enhanced reliability.

Brand	ASUS
Model	TUF B365M-E GAMING
CPU	Intel? Socket 1151 9th / 8th Gen Intel? Core? Pentium? Gold and Celeron? Processors Supports Intel? 14 nm CPU Supports Intel? Turbo Boost Technology 2.0 * The Intel? Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset	Intel? B365
Memory	Intel? B365 Chipset 4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel? Extreme Memory Profile (XMP)
Graphic	Integrated Graphics Processor- Intel? HD Graphics support Multi-VGA output support : HDMI/DVI-D/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @ 60 Hz Maximum shared memory of 1024 MB (for iGPU exclusively) Supports Intel? InTru?3D, Quick Sync Video, Clear Video HD Technology, Insider?nSupports up to 3 displays simultaneously
Multi-GPU Support	Supports AMD CrossFireX?Technology
Expansion Slots	1 x PCIe 3.0 x16 (x16 mode) 1 x PCIe 3.0 x16 (max at x4 mode) 1 x PCIe 3.0/2.0 x1
Storage	Intel? B365 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s), gray Support Raid 0, 1, 5, 10 Intel? Optane?Memory Ready
LAN	Intel? I219V, 1 x Gigabit LAN TUF LANGuard
Audio	Realtek? ALC1200 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB Ports	Intel? B365 Chipset : 6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board) Intel? B365 Chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)
Internal I/O Ports	1 x Addressable RGB header 1 x Aura RGB Strip Header 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin, moss green) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector
Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 1 Type-A up to 5Gbps 2 x USB 2.0 1 x 8-channel Audio I/O
BIOS	128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F3 My Favorites, Last Modified log, F6 Qfan Control, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability	WOL by PME, PXE
Form Factor	mATX Form Factor 24.4 cm x 24.1 cm (9.6 x 9.5 )
