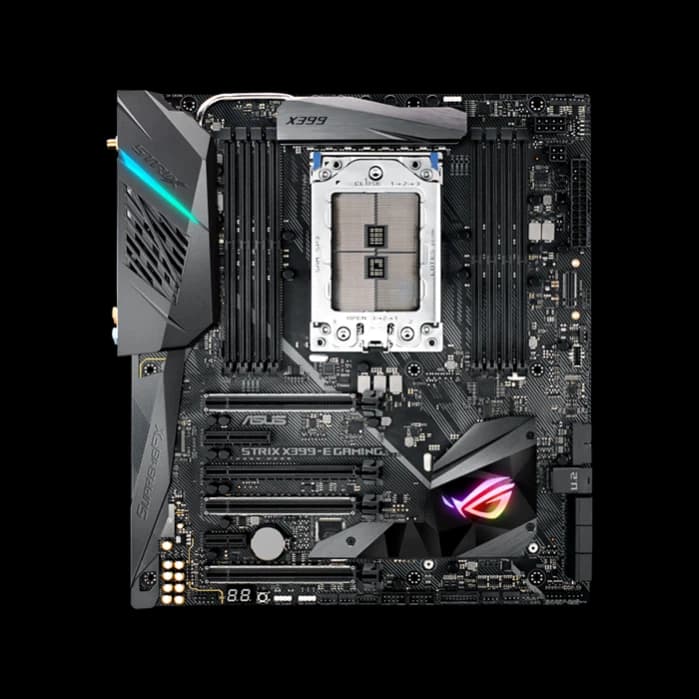

ASUS ROG STRIX X399-E GAMING AMD Ryzen Threadripper TR4 DDR4 M.2 U.2 X399 EATX HEDT Motherboard with onboard 802.11AC WiFi, USB 3.1 Gen2, and AURA Sync RGB Lighting

Powered by AMD? Ryzen?Threadripper?TR4 processors to maximize connectivity and speed with support for up to 128GB of DDR4 memory, dual NVMe M.2 drives, onboard 802.11AC WiFi , front side U.2 and front panel USB 3.1 Gen2 port 5-Way Optimization featuring Auto-Tuning and FanXpert 4 provides automatic overclocking profiles for maximum OC performance while AIO and watercooling headers deliver dynamic system cooling Three patent-pending SafeSlots feature an injection molding process that integrates metal framing for a stronger, firmly anchored PCIe slot built for heavyweight GPUs Unmatched Personalization with ASUS exclusive AURA Sync RGB lighting, two additional RGB headers and 3D-printing mounts to customize your build Industry-leading 8-channel HD audio with the ROG exclusive SupremeFX S1220A driven by Japanese capacitors

Brand	ASUS
Model	ROG-STRIX X399-E GAMING
CPU	AMD SocketTR4 for 1st and 2nd Gen AMD Ryzen?Threadripper?Processors
Chipset	AMD X399
Memory	AMD Ryzen?Threadripper?Processors 8 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
Graphic	Integrated Graphics in AMD Ryzen?4000 G-Series/ 3000 G-Series/ 2000 G-Series Desktop Processors VGA output support : HDMI port - Supports HDMI 1.4b with max. resolution 4096? x 2160? @ 24? Hz
Multi-GPU Support	AMD Ryzen?2nd Generation/Ryzen?1st Generation Processors Supports NVIDIA? Quad-GPU SLI?Technology Supports NVIDIA? 3-Way SLI?Technology Supports NVIDIA? 2-Way SLI?Technology Supports AMD Quad-GPU CrossFireX?Technology Supports AMD 3-Way CrossFireX?Technology Supports AMD 2-Way CrossFireX Technology
Expansion Slots	4 x PCIe 3.0 x16 (single@x16, dual@x16/x16, triple@x16/x16/x8 mode) AMD X399 chipset 1 x PCIe 2.0 x4 (max at x4 mode) 1 x PCIe 2.0 x1
Storage	AMD Ryzen?Threadripper?Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x U.2 port AMD X399 chipset : 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
LAN	Intel? I211-AT Anti-surge LANGuard ROG GameFirst IV
Bluetooth	Bluetooth V4.2
Audio	ROG SupremeFX8-Channel High Definition Audio CODEC S1220A - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality120dB(Line-out at rear)and113dBSNR recording input(Line-in) Audio Feature : - SupremeFX Shielding?Technology - Optical S/PDIF out port(s) at back panel - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs - EMI protection cover to prevent electrical noise to affect the amplifier quality - Sonic Radar III - Sonic Studio III
USB Ports	AMD Ryzen?Threadripper?Processors : 8 x USB 3.1 Gen 1 port(s) (8 at back panel, , Type-A) 1 x USB 3.1 Gen 2 port(s) (1 at mid-board) 4 x USB 3.1 Gen 1 port(s) (4 at mid-board) AMD X399 chipset : 4 x USB 2.0 port(s) (4 at mid-board) ASMedia? USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (Type-A + USB Type-CTM)
Internal I/O Ports	1 x Q_Code 1 x Aura Addressable Strip Header(s) 2 x Aura RGB Strip Header(s) 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x M.2_FAN connector 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x USB 3.1 Gen 2 front panel connector
Back I/O Ports	1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 (teal blue)Type-A + USB Type-CTM 8 x USB 3.1 Gen 1 (blue) , 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x USB BIOS Flashback? Button(s)
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability	WfM 2.0, DMI 3.0, WOL by PME, PXE
Form Factor	Extended ATX Form Factor 12 inch x 10.6 inch ( 30.5 cm x 26.9 cm )
