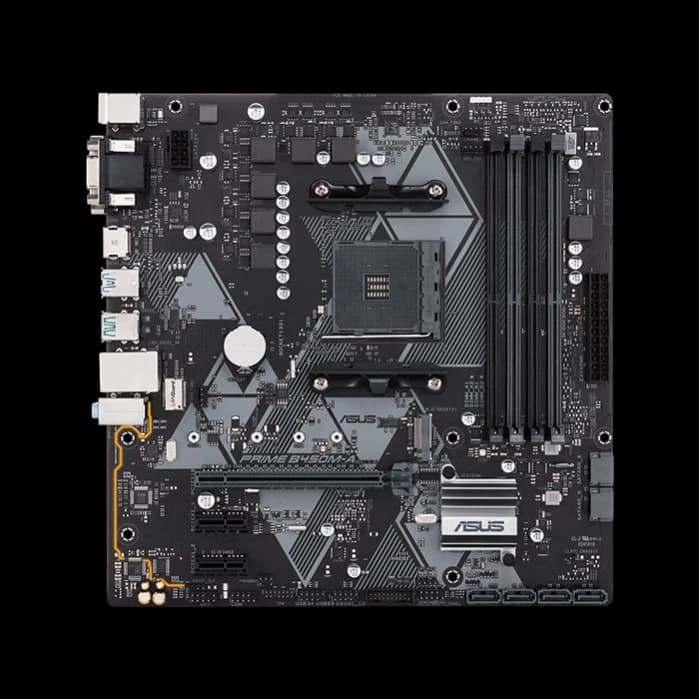

1 / 5ASUS PRIME B450M-A, AMD AM4 mATX motherboard with Aura Sync RGB header, DDR4 4400MHz, M.2, HDMI 2.0b, SATA 6Gbps and USB 3.1 Gen 2
Rs. 15,444
Inclusive of all taxes
Fan Xpert 2+: Flexible controls for ultimate cooling and silence. Ultrafast connectivity: Supreme flexibility with USB 3.1 Gen 2 and native M.2 ASUS Aura S...
Out of Stock
Quantity
1
COD Available
Pay on delivery
7-Day Returns
Easy returns
Visit Seller Store
Buyer Protection
Full refund if your item isn't as described or doesn't arrive.
Description
| Brand | ASUS |
| Model | PRIME B450M-A |
| CPU | AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen?2nd and 1st Gen AMD Ryzen?with Radeon?Vega Graphics/Athlon?with Radeon?Vega Graphics Processors * Due to CPU limitation, CPU cores supported varies by processors. |
| Chipset | AMD B450 |
| Memory | 3rd/2nd/1st Gen AMD Ryzen? 2nd and 1st Gen AMD Ryzen?with Radeon?Vega Graphics/ Athlon?with Radeon?Vega Graphics Processors 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor. |
| Graphic | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen?with Radeon?Vega Graphics/ Athlon?with Radeon?Vega Graphics Processors Multi-VGA output support : HDMI/DVI-D/D-Sub ports - Supports HDMI 2.0b with maximum resolution of 4096? x 2160? @ 60? Hz - Supports DVI-D with max. resolution 1920? x 1200? @ 60?Hz - Supports D-sub with max. resolution 1920? x 1200? @ 60? Hz |
| Expansion Slots | 3rd/2nd/1st Gen AMD Ryzen?Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen?with Radeon?Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) *1 AMD Athlon?with Radeon?Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (max at x4 mode) AMD B450 chipset 2 x PCIe 2.0 x1 |
| Storage | AMD B450 chipset : 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 3rd/2nd/1st Gen AMD Ryzen? 2nd and 1st Gen AMD Ryzen?with Radeon?Vega Graphics/ Athlon?with Radeon?Vega Graphics Processors : 2 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 3rd/2nd/1st Gen AMD Ryzen? 2nd and 1st Gen AMD Ryzen?with Radeon?Vega Graphics : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 AMD Athlon?with Radeon?Vega Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*2 |
| LAN | Realtek? RTL8111H, 1 x Gigabit LAN Controller(s) ASUS LAN Guard |
| Audio | Realtek? ALC887 8-Channel High Definition Audio CODEC Audio Feature : - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| USB Ports | 3rd/2nd/1st Gen AMD Ryzen? 2nd and 1st Gen AMD Ryzen?with Radeon?Vega Graphics/ Athlon?with Radeon?Vega Graphics Processors : 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue) AMD B450 chipset : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, ) AMD B450 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) AMD B450 chipset : 4 x USB 2.0/1.1 port(s) (4 at mid-board) |
| Internal I/O Ports | 1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x TPM header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4?-pin) 2 x Chassis Fan connector(s) (2 x 4?-pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x Speaker connector |
| Back I/O Ports | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 4 x USB 3.1 Gen 1 3 x Audio jack(s) |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control |
| Form Factor | mATX Form Factor 9.6? inch x 9.5? inch ( 24.4? cm x 24? cm ) |
